<< | < | AX-WAC - Three channel window actuator controller with LCD
|
| |
|

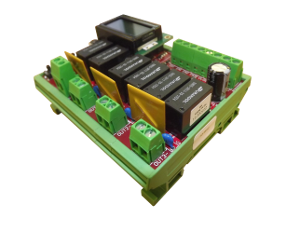

The Axio AX-WAC is a 3 channel window controller providing timed forward/reverse outputs to open and close 2 wire DC window actuators. Each output can be driven from a separate 0-10 volt input, or grouped as described below, including a linear option. Cycle times from 5 to 240 seconds can be set or the window opening time can be measured. A 'Close All' input is provided to drive all windows closed overriding the control inputs. The AX-WAC is supplied in a DIN rail carrier as standard suitable for mounting on TS35 section DIN rail. The module features high quality rising clamp terminals for ease of connection. |
Product Features
| • 3 independent forward/reverse outputs
• 5 to 240 second cycle time ranges
• Close All input to close all windows
• Staggered actuator switching available
| • Independent, grouped or linear modes
• 0-5, 2-10 or 0-10 volt input range selection
• Selectable output step count
• Selectable reset options
|
Control supply voltage
| 24Vdc ±15%, 90mA
| Inputs
| 3 control input, 0-10, 2-10 or 0-5 volts, 2mA maximum.
|
| Close All input, volt free contact, 0.5mA maximum.
|
| Actuator supply voltage, 12-24Vdc as required by actuators.
| Display
| 8 character by 2 line display
| Menu options
| Input range
|
| Control mode
|
| Output switching
|
| Cycle time
|
| Output step count
|
| Output reset time
| Outputs
| 3 Forward/Reverse actuator outputs protected by self resetting fuses. Maximum 5A each output, total maximum 15A. (Resistive)
| Terminals
| Rising clamp for 0.5-2.5mm2 cable
| Ambient temperature range
| 0°C to 50°C
| Dimensions
| 102(W) x 83(H) x 48(D) mm (Maximum)
| Weight
| 150gms
| Country of origin
| United Kingdom
|
