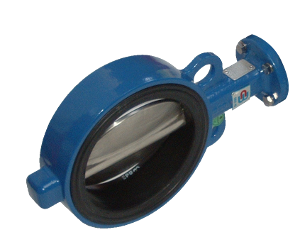

<< | < | AX-VB - Water Butterfly Valves
|
| |
|
The AX-VB range of tight shut off Wafer Butterfly Valves are designed for continuous control of water, air and low pressure steam upto 110C or for use as a shut off valve . The valves come complete with PN6, 10 & 16 flanged connections from 25 to 200mm. |
Product Features
| • Cast Iron Body
• Nominal Pressure 16 bar
| • Good Control Characteristics
• PN6 ,PN10 or PN16 flange connections
|
Fluid Temperature
| 0 to 110 degC
| Operating Temperature
| -10 to 130 degC
| Leakage Rate
| <0.0001% of Kvs
| Angle of Rotation
| 90deg
| Pressure Class
| PN16
| Kvs Values
| 36m3/hr to 4000m3/hr
| Rangeability
| 100
| Actuator Run Time
| ASF
|
| AR30W
|
| A44W
| Materials
| Body Cast
|
| Spindle
|
| Collar
|
| Wafer
|
| Spindle
| Country of Origin
| Switzerland
|
| AX-VB.pdf / Butterfly Valves |  |
|
|
|
