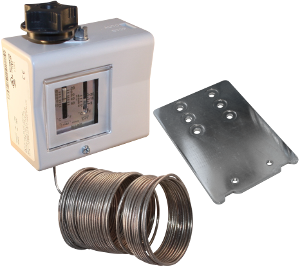

<< | < | AX-TS-FS - Frost Protection Thermostat
|
| |
|
The AX-TS-FS-x Frost protection Thermostat are a range of units for frost protection in the fresh air intake in air conditioning systems .These units provide a switched output based on the average temperature detected along a six metre capillary sensor. The unit is fixed across a duct,using capillary clips, downstream of the pre-heater or frost coil and is used to prevent the icing up of filters, fans and coils. |
Product Features
| • Auto and Manual Reset Versions
• 6 Metre capillary
| • 16A @240Vac Switch Rating
• Easy adjustment of setpoint
|
Control Range
| -18 to + 13°C
| Operating Volatge
| 240Vac @ 50/60Hz
| Switch Type
| SDPT Volt Free Contacts
| Switch Rating
| 16A(8) @ 250Vac
| Switching Differential
| 1.7°C (approx)
| Capillary
| 6 metres of 2mm diam copper
| Ambient range
| Housing 0 to 50°C
|
| Capillary -15 to + 150°C
| Dimensions
| 87 x 50 x 180mm (max)
| Protection
| IP44 as standard ( IP65 option at additional cost)
| Weight
| 580gms
| Country of Origin
| EU
|
| AX-TS-FS.pdf / Frost Protection Thermostat |  |
|
|
|
