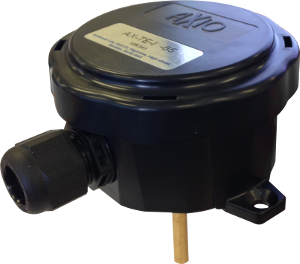

 <<  |  <  |   AX-TE-Ix-65 - Immersion temperature sensors 65mm
60mm probe
AX-TE-I3K-65 / Immersion Temperature Sensor 60mm probe with 3K3A1 POA Qty
AX-TE-IT-65 / Immersion Temperature Sensor 60mm probe with 10K3A1 POA Qty
AX-TE-IA-65 / Immersion Temperature Sensor 60mm probe with 10K4A1 POA Qty
AX-TE-IH-65 / Immersion Temperature Sensor 60mm probe with 20K6A1 POA Qty
AX-TE-ID-65 / Immersion Temperature Sensor 60mm probe with 30K3A1 POA Qty
AX-TE-ISAT-65 / Immersion Temperature Sensor 60mm probe with SAT1 POA Qty
AX-TE-I2.2K-65 / Immersion Temperature Sensor 60mm probe with 2.2K POA Qty
AX-TE-I100-65 / Immersion Temperature Sensor 60mm probe with PT100a POA Qty
AX-TE-I1K-65 / Immersion Temperature Sensor 60mm probe with PT1000a POA Qty
AX-TE-IN1K-65 / Immersion Temperature Sensor 60mm probe with Ni1000a, TCR curve POA Qty
AX-TE-ITAC-65 / Immersion Temperature Sensor 60mm probe with 1K87A1 POA Qty
AX-TE-ITX-W-65 / Immersion Temperature Sensor 60mm probe with Active 4-20ma and 0-10V outputs POA Qty
Pockets
AX-TE-ISP-65 / Stainless steel pocket for 65mm Probe POA Qty
 <<  |  <  | OVERVIEW | SPECIFICATION | DATASHEETS

The AX-TE-Ix-65 range of Immersion temperature sensors are designed to interface with a wide variety of HVAC control equipment. Units are available with a high quality thermistor element or with an active linear output. The sensors are designed to be fitted into a range of stainless steel pockets to provide accurate reading of fluid temperature without the need for the probe itself to be immersed.
Product Features
• Large range of sensor options
• Non-contact sensing
• Direct fixing, no extra brackets required
• Flame retardant ABS plastic

Output
Passive - Range of two wire thermistor and PTC platinum elements providing variable resistance.
Accuracy
Thermistor +/- 0.2°C between 0°C and 70°C

Platinum +/- 0.35°C between 0°C and 100°C (PT100a and PT1000a)
Materials
Housing - Flame retardant ABS plastic

Probe - Stainless steel
Ambient Temperature
-10°C to 60°C, 0-95% RH
Terminals
Rising Clamp for 0.5-1.5mm² Cable
Housing Dimensions
92mm diameter x 52mm height
Fixing Holes
2 off, 5mm holes on 92mm centres
Probe length
65mm
Protection
IP65
Country of Origin
Made in UK
AX-TE-ITX-W-65
see seperate data sheet

AX-TE-Ix.pdf / Immersion Temperature Sensors 65mm
