 <<  |  <  |   AX-RM4M - Four Stage Relay Module
AX-RM4M / Four Stage Relay Module POA Qty
 <<  |  <  | OVERVIEW | SPECIFICATION | DATASHEETS

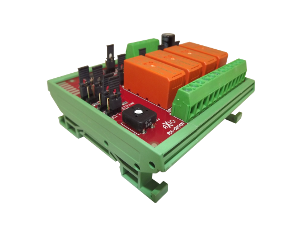

The Axio AX-RM4M converts a 0-10Vdc or 2-10Vdc control signal into a 4 relay output with 9 selectable modes: Stage, Sequence, Raise/Lower, Binary, Circular, Power-on stage and Power-on sequence including cascaded options to work with an AX-RM6M to form a 10 stage unit, switching in 1 Volt steps. In certain modes the output sequence can be reversed. The module is powered by 24Vac or 24Vdc and jumpers for Auto/Hand/Off are provided to aid commissioning with individual LEDs to indicate the relay states. The AX-RM4M is supplied in a DIN rail carrier for mounting on TS35 section DIN rail and features high quality rising clamp terminals for ease of connection.
Product Features
0-10 or 2-10 volt input
4 SPCO relays
Step and reverse options
Adjustable reaction time
Cascade with AX-RM6M for 10 stages
Binary output
DIN rail carrier as standard (TS35 DIN rail)
High quality rising clamp terminals

Input signals
Control 0-10Vdc or 2-10Vdc at 1mA maximum

Reverse Volt free contact to switch 0.5mA
Output contacts
4 SPCO relays. NO contact 12A, NC contact 3A, 250Vac resistive load
Power supply
24Vac 10% at 140mA maximum

24Vdc 10% at 100mA maximum
Modes of operation
9 modes, see Mode table
Manual override
Auto / Hand (On) / Off
LED indicators
On when relay energised
Time delay
0-60 seconds
Settling time
0.1 or 1 seconds
Step mode
Sequence through intermediate steps
Terminals
Rising clamp for 0.5-2.5mm2 cable
Ambient temperature range
0C to 50C
Dimensions / Weight
90(W) x 82(H) x 43(D) mm / 135 gms
Country of origin
United Kingdom

AX-RM4M.pdf / Four Stage Relay Module
