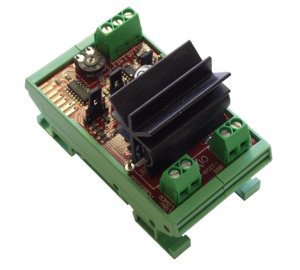

 <<  |  <  |   AX-RM2T-SSR - Two Stage Triac Module with Timer
AX-RM2T-SSR / Dual Triac Output Module with Timer 0 to 30 secs POA Qty
AX-RM2T-SSR/2 / Dual Triac Output Module with Timer 0 to 240 secs POA Qty
 <<  |  <  | OVERVIEW | SPECIFICATION | DATASHEETS

The AX-RM2T-SSR converts a 0-10V dc input signal into a Triac output pair. The module can be configured, for a raise/lower , high/low or binary output with or without stage delays or as a timer module. Applications include the control of windows , valve or damper actuators, in conjunction with a BMS Controller. The unit has an adjustable timer function . The AX-RM2T-SSR is powered from 24Vac/dc and is designed to fit onto TS35 SectionDIN Rail. The unit is particularly useful for use with loads known to have a high inrush, as the unit always switches at the zero-crossing. Also very useful in environments where the noise caused by relays switching is a problem.
Product Features
0-10V dc Input
2 x Triac Outputs with zero-crossing switching
On/Off/Auto Override
Raise/Lower , High/Low, Binary and Timer
Functions
Adjustable Timer Range
LED Indication
Totally Silent operation
DIN Rail Mounting (TS35)

Input Signal
0-10V dc (1mA max)
Output Contacts
2 x Triac - zero cross switching - AC switching only
Output Rating
Maximum 240V @1kW (500W per output in High/Low or Binary Mode
Power Supply
24Vac /dc
Power Consumption
80 mA max@24Vac
Mode of Operation
Raise/Lower

High/Low

Binary

Single stage Timer

Two stage Timer
Manual Override
ON/OFF/AUTO (Link Selectable)
Timer
AX-RM2T-SSR

AX-RM2T-SSR/2
Terminals
Rising Clamp for 0.5-2.5mm2 Cable
LED Indicators
ON when triac energised
Ambient Temp. Range
0 to 50C
Dimensions
83mm (l) x 46mm (w) x 50mm (h) (approx.)
Weight
60 gms
Country of Origin
United Kingdom

AX-RM2T-SSR.pdf / Two Stage Triac Module with Timer
