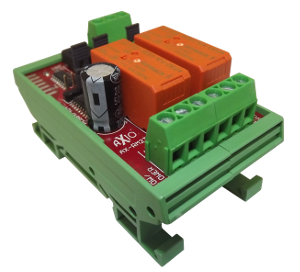

AX-RM2T / Two Stage Relay Output Module with Timer 0-30 seconds POA Qty
AX-RM2T/2 / Two Stage Relay Output Module with Timer 0-240 seconds POA Qty
 <<  |  <  | OVERVIEW | SPECIFICATION | DATASHEETS

The Axio AX-RM2T converts a 0-10Vdc control signal into 2 relay outputs. The module has 4 selectable modes: Raise/Lower, High/Low or Binary with or without stage delays, or as a timer module. The AX-RM2T is powered by 24Vac or 24Vdc. Jumpers for Auto/Hand/Off are provided to aid commissioning. Two LEDs indicate the individual relay states. The module is supplied in a DIN rail carrier for mounting on TS35 section DIN rail and features high quality rising clamp terminals for ease of connection.
Product Features
0-10Volt dc input
Adjustable Timer Range
2 SPCO relay outputs
LED indication of relay status
Auto/Hand/Off override
DIN rail carrier as standard (TS35 DIN rail)
Raise/Lower, High/Low, Binary and Timer functions
High quality rising clamp terminals

Input signals
Control 0-10Vdc at 1mA maximum
Output contacts
2 SPCO relays. NO contact 12A, NC contact 3A, 250Vac resistive load
Power supply
24Vac 10% at 95mA maximum

24Vdc 10% at 45mA maximum
Modes of operation
Raise/Lower, High/Low, Binary and Timer
Manual override
Auto / Hand (On) / Off
LED indicators
On when relay energised
Timer
AX-RM2T - 0-30 seconds per stage,
Timer
AX-RM2T/2 - 0-240 seconds per stage
Terminals
Rising clamp for 0.5-2.5mm2 cable
Ambient temperature range
0C to 50C
Dimensions / Weight
46(W) x 82(H) x 43(D) mm / 75 gms
Country of origin
United Kingdom

AX-RM2T.pdf / AX-RM2T Two Stage Relay Module with Timer
