 <<  |  <  |   AX-RM1 - Single Relay Module
AX-RM1-12DC / Single Relay Module 12Vdc sensitive Coil POA Qty
AX-RM1-24AC / Single Relay Module 24Vac Coil POA Qty
AX-RM1-24DC / Single Relay Module 24Vdc Coil POA Qty
AX-RM1-230AC / Single Relay Module 230Vac Coil POA Qty
 <<  |  <  | OVERVIEW | SPECIFICATION | DATASHEETS

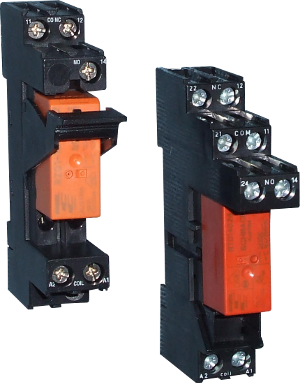

The AX-RM1 is a SPDT relay module which converts a BMS output to a mains rated volt free contact. The AX-RM1 is available with a number of different coil options including the AX-RM1-12DC sensitive coil version to reduce the load on BMS controllers such as Trend outstations. The AX-RM1-24AC can be used for converting a Triac digital output to a VFC and the AX-RM1-24DC for switching loads on controllers with 24Vdc powered digital outputs.
Product Features
Converts BMS Outputs to VFC
Large Range of Coil Options
Complete With DIN Carrier and Retaining Clip
Sensitive coil 12Vdc Version

Coil Rating

AX-RM1-12DC
12Vdc - 20.8mA (sensitive coil)
AX-RM1-24AC
24Vac - 31.6mA
AX-RM1-24DC
24Vdc - 16.7mA
AX-RM1-230AC
230Vac - 3.2mA
Contact Rating

AX-RM1-12DC
SPDT - 250V @ 10A (Resistive)
AX-RM1-24AC
SPDT - 250V @ 12A (Resistive)
AX-RM1-24DC
SPDT - 250V @ 12A (Resistive)
AX-RM1-230AC
SPDT - 250V @ 12A (Resistive)
Contact Material
AgNi 90/10
Terminals
Rising Clamp for 0.5-2.5mm2 Cable
Ambient Temp
-25C to 85oC
Dimensions
77 x 15.5 x 69mm (max.)
Country of Origin
United Kingdom

AX-RM1.pdf / Single Relay Module
