<< | < | AX-PLC-GDD - Programmable Logic Controller
|
| |
|

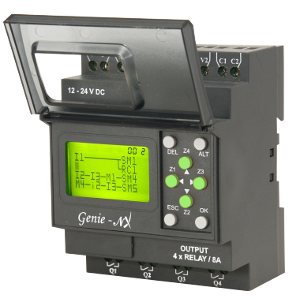

TheAX-PLC-GDD ProgrammableLogicController supports upto 48 I/O’s and has 250 lines of ladder programming. The unit has a backlit LCD screen for display & modification of pre-selected parameters of functional blocks, viewing I/O status and programming on the device. The unit has PC software for programming, online and offline simulation, documentation and printing |
Product Features
| • Upto 32 Digital Inputs with expansion modules
• Upto 16 Digital Outputs with expansion modules
• 16 soft text messages
• Modbus RTU communication (option)
| • 12/24Vdc and 110/240Vac versions
• 16 Timers & Counters
• 16 Time switches
• LCD Display
|
AX-PLC-G7DDT9-Master Controller-AC & AX-PLC-G7DDT6E Product Specification
|
| PowerSupply
| 110 to 240Vac - 20% +10%
| MaxSupplyCurrent
| 36mA
| PowerConsumption
| 5W
| Digital InputRange
| 0-40Vac -Off 70 to 265Vac on
| Digital Inputs
| 8
| ModbusCommunication
| yes -RTU Slave
| SwitchingContacts SPST Relays 8A@240Vac resistive
|
| RelayOutputs
| 4
| Timers
| 16
| Counters
| 16 (up/down and & retentive selectable)
| Time Switches 16
|
| CompareCounters
| 16
| SoftMessages
| 16 priority driven
| AuxiliaryRelays
| 32
| I/OExtensions
| Yesmaximumof3
| PowerReserve (for clock only)
| 150hrs (lithium battery)@0 to 55C
| LCDDisplay
| 2Line 16 digitLCD
| Lines for LadderProgramme
| 250
| Protection
| IP20 (for front panel only - conforms to IEC 60529 )
| ExternalFusing
| 250mAfuse
| Dimensions
| 72x65x90mm
| Weight
| 248gms
| Terminals
| Terminals for 0.5 to2.5mm2 cable
| AmbientRange
| 0 to 55°C 35 to 85% RHnon condensing
| Approvals
| CE,UL
| EMC
| CISPR14-1ClassB, IEC61000-4-2 level 111, IEC61000-4-4 level 1V
| IEC61000-4-5 level 111, IEC61000-4-11, IEC68-2-6
|
|
| AX-PLC-GDD.pdf / Programmable Logic Controller |  |
|
|
|
