<< | < | AX-LSPS - Liquid Static Pressure switches
|
| |
|
|

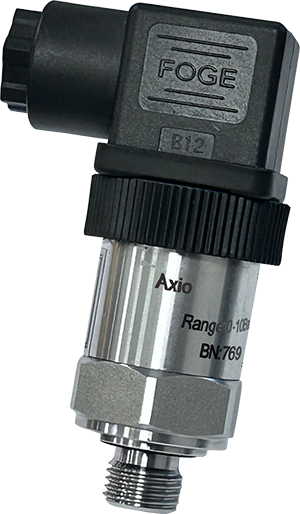

The Liquid Pressure Switch AX-LSPS features a compact design with a standard solenoid valve plug for easy wiring. It provides a wide measuring range (0–500 bar), high overload resistance (up to 1230 bar), and excellent repeatability. Gold-plated contacts are available in NO or NC configurations, offering high switching capacity and long service life.Operation is based on a spring-loaded piston mechanism: as system pressure changes, the spring deflects, and at the setpoint the mechanism actuates to deliver a switch signal.Suitable for water, oil, and gas pressure management applications. |
Product Features
| • Adjustable setpoint
• Measuring range: 0 –40 bar
• High overload resistance
| • Spring-loaded piston mechanism for accurate switching
• High repeatability and reliable performance
• Suitable for water, oil, and gas pressure management
|
Hysteresis
| 10-15% of set value (Can be chosen when ordering)
| Tolerance
| 2% of set value
| Output
| NO / NC
| Contact Rating
| 5A @ 250VAC
| Contacts
| Gold Plated
| Material
| Diaphragm
| Piston
| Steel with NBR seals
| Process Connection
| Galvanized steel & Stainless Steel
| Pressure Connection
| G1/4” Male
| Housing
| Steel
| Mechanical Life
| 1 million cycles
| Stroke
| 90 Strokes/Min (Maximum)
| Connections
| DIN 43650 Plug-In Connector
| Operating Temperature
| -20°C to 85°C
| Unit Weight
| 140 grams
| Ingress Protection
| IP65
| Country Of Origin
| UK
|
| AX-LSPS.pdf / Liquid Static Pressure Switch |  |
|
|
|
