 <<  |  <  |   AX-GS-CM-V-65 - Carbon Monoxide Sensor Voltage Output- Round Enc
AX-GS-CM-V-65 / Carbon Monoxide Voltage Transmitter 0-300ppm POA Qty
AX-GS-CM-V-100-65 / Carbon Monoxide Voltage Transmitter 0-100ppm POA Qty
AX-GS-CM-VR-65 / Carbon Monoxide Voltage Transmitter 0-300ppm with relay POA Qty
AX-GS-CM-VR-100-65 / Carbon Monoxide Voltage Transmitter 0-100ppm with relay POA Qty
AX-GS-CM-VR2-65 / Carbon Monoxide Voltage Transmitter 0-300ppm with 2 relays POA Qty
AX-GS-CM-VR2-100-65 / Carbon Monoxide Voltage Transmitter 0-100ppm with 2 relays POA Qty
AX-GS-CM-VL-65 / Carbon Monoxide Voltage Transmitter 0-300ppm with display POA Qty
AX-GS-CM-VL-100-65 / Carbon Monoxide Voltage Transmitter 0-100ppm with display POA Qty
AX-GS-CM-VRL-65 / Carbon Monoxide Voltage Transmitter 0-300ppm with relay and display POA Qty
AX-GS-CM-VRL-100-65 / Carbon Monoxide Voltage Transmitter 0-100ppm with relay and display POA Qty
AX-GS-CM-VR2L-65 / Carbon Monoxide Voltage Transmitter 0-300ppm with 2 relays and display POA Qty
AX-GS-CM-VR2L-100-65 / Carbon Monoxide Voltage Transmitter 0-100ppm with 2 relays and display POA Qty
 <<  |  <  | OVERVIEW | SPECIFICATION | DATASHEETS

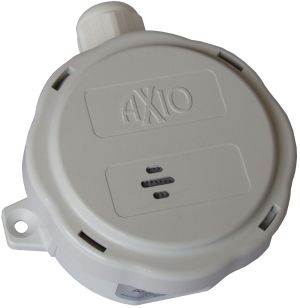

The AX-GS-CM-V-65 carbon monoxide voltage transmitter provides a linear output signal for CO levels from 0-300ppm. The output voltage is configurable for 0-5Vdc, 2-10Vdc or 0-10Vdc. An optional relay with set trip points is available. The transmitter electronics are housed in the lid of the enclosure and are connected using plug-in connectors, this enables cost-effective easy replacement using our three year exchange option.
Product Features
• Monitors CO levels over a range of 0 to 100/300ppm
• Electrochemical sensor element
• Relay option with jumper selectable alarm levels
• Easy installation with plug-in connections
• 3 year warranty
• 0-5, 2-10 or 0-10Vdc selectable voltage output
• 24Vac/dc powered
• Easy maintenance and 3 year sensor exchange option
• Sensor is UL recognised component UL2034, UL2075, E240671

Sensor Type
Electrochemical 3-electrode
Output
0-5Vdc, 2-10Vdc or 0-10Vdc at 5mA maximum load
Relay
(Optional) SPCO relay, 230Vac 5A (resistive)
2 Relay
(Optional) 2 SP relays common connection, 50V 1A (resistive)
Relay Trip Points
(Relay option only) 25, 60, 150ppm
Output Range
0-300ppm
Output Accuracy
±10% FSD
Output Stability
<5% signal drift per year
Typical Coverage Area
700m² or 15m radius
Settling Time
3 minutes after power up
Life Expectancy
>3 years dependant on environment
Power Supply
24Vac ±10%, 100mA maximum or 24Vdc ± 10%, 60mA maximum
Ambient Temp. & Humidity Range
0-50°C, 15-90% RH non-condensing
Housing
Flame retardant ABS, IP65
Dimensions & Weight
92mm diameter x 52mm, 170gms
Fixing Holes
4mm holes, 92mm between centres
Terminals
Rising clamp for 0.5-1.5mm²
Country of Origin
United Kingdom

AX-GS-CM-V-65.pdf / Carbon monoxide voltage transmitter
