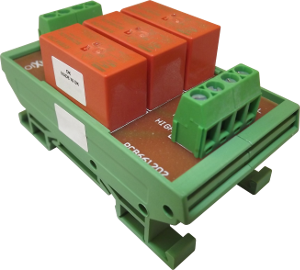

 <<  |  <  |   AX-FRM3 - Fan Speed 3 Relay Module
AX-FRM3-230 / Fan Speed Relay Module 230Vac - DIN Rail POA Qty
AX-FRM3-24 / Fan Speed Relay Module 24Vac - DIN Rail POA Qty
AX-FRM3-230E / Fan Speed Relay Module 230Vac - enclosure mounted POA Qty
AX-FRM3-24E / Fan Speed Relay Module 24Vac - enclosure mounted POA Qty
 <<  |  <  | OVERVIEW | SPECIFICATION | DATASHEETS

The AX-FRM3 is an interlocked, three relay module. It is intended to be used as a fan speed switch.The unit can be used to change fan speeds on fan motors with multi-tapped windings and also transformer speed controlled motors. The 'break before make' design of the relay contact configuration and common switching point ensure that only one set of contacts is active at any one time, thus preventing short circuits.The standard unit is powered by 230Vac. Other variants are available on request.
Product Features
Interlocked relays allow only one output on at a time
Low and high voltage relay coil options
Enclosure options - DIN rail or IP65 enclosed
Switches up to 12 Amps

Inputs
230Vac or 24Vac options
Outputs
Common and 3 volt-free contact switched outputs
Contact rating
12A @250Vac resistive (inductive current depends on load - typically 5A Inductive)
Terminals
Rising Clamp for 0.5-2.5mm2 Cable
Ambient Temperature
0C to 50C
Dimensions - Din rail version
47 x 77 x 49mm (max.) Fits on to standard TS35 DIN rail section
Dimensions - Enclosed version
92mm diameter x 52mm height
Fixing Holes - Enclosed version
4mm holes on 92mm centres
Housing - Enclosed version
IP65 flame retardant ABS
Weight
AX-FRM3

AX-FRM3-xxxE
Country of origin
United Kingdom
