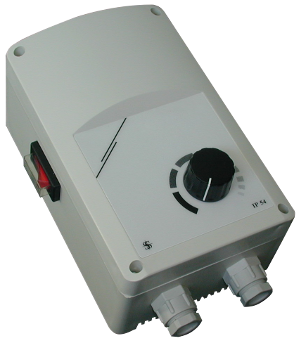

<< | < | AX-FC-STL - Manual Fan Speed Controller
|
| |
|
Designed for easy and trouble free installation, the AX-FC-STL Series of surface mounted manual fan speed controllers feature an IP54 housing suitable for use in humid environments . Several motors can be connectedto one unit so long as the overall current limit is not exceeded. The AX-FC-STL Series have suitably rated integral fuses and comply with the relevant CE directives. . Only to be used with fans or pumps that aresuitable for speed control. The motor should be internally protected against overheating |
Product Features
| • Manual Fan Speed Control
• 1.5A, 3A, 5A, 6A and 10A Models
• Suitable for 230Vac 50/60Hz Moters
| • Integral Fuse
• Potentiometer Control
• Surface Mount
|
Inputs
| 230Vac 1 phase 50/60Hz
| Control Type
| Manual via a Potentiometer
| On/Off switch
| Separate to Potentiometer
| Minimum Speed
| Adjustable via Trim Pot
| Ratings
| Current Fusing
|
| STL015 0.1 to 1.5A 3A
|
| STL030 0.3 to 3A 5A
|
| STL050 0.5 to 5A 8A
|
| STL060 0.6 to 6A 8A
|
| STL100 1.0 to 10A 14A
| Ambient Temp
| 0-50oC
| Dimensions
| STL015 STL030 STL050 STL060 STL100
|
| 85(w) x 110(h) x 75(d) mm 90(w) x 172(h) x 95(d) mm
| Weight
| 0.325 0.350 0.440 0.650 0.710
| Protection
| IP54
| CE Certificates
| EMC 89/336/CEE and 92/31/CEE LVD 73/23/CEE
| Country of Origin
| EU
|
| AX-FC-STLxx.pdf / Manual Fan Speed Controller |  |
|
|
|
