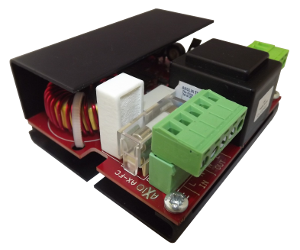

<< | < | AX-FC - Fan Speed Controller
|
| |
|
The compact Axio AX-FC fan speed controller provides step-less speed regulation of single phase AC motors. The unit offers several voltage and current control input options combined with a fan off function. The unit is designed for panel mounting. An optional DIN rail clip is available. |
Product Features
| • Flexible control input selection
• Fan off function
• 230Vac powered
| • Minimum and maximum speed adjustment
• 10 volt output for potentiometer control
• Panel mounting
|
Supply voltage
| 210 to 250Vac 50Hz
| Control signal
| Voltage
| 0-10V input current
| 1mA maximum
| Maximum output current
| FC-4 4 Amps, FC-6 6 Amps, FC-8 8 Amps
| Start up
| Soft start
| Minimum speed adjustment
| 0% to 40%
| Maximum speed adjustment
| 40% to 100%
| Fuse size
| 20mm rated at 4, 6 or 8 Amps (Dependant on unit)
| Ambient temperature
| 0°C to 40°C (See Dimensions and fixings)
| Terminals
| Rising clamp for 0.5-2.5mm² cable
| Dimensions
| 83(W) x 37(H) x 74 (D) mm (Not including DIN rail clip)
| Weight
| 220 grams
| Country of origin
| United Kingdom
|
| AX-FC-8.pdf / Fan Speed Controller |  |
|
|
|
