 <<  |  <  |   AX-ET-4 - Electronic Thermostat - Four Stage
AX-ET-4-24 / Electronic Thermostat - Four Stage 24Vac/dc POA Qty
AX-ET-4-230 / Electronic Thermostat - Four Stage 230Vac POA Qty
 <<  |  <  | OVERVIEW | SPECIFICATION | DATASHEETS

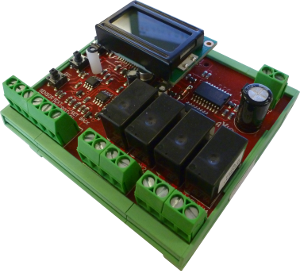

The Axio AX-ET-4 is a four stage electronic thermostat with a two line LCD display to simplify setting up. The unit controls temperature between -10C to +110C using configurable heating and cooling stages. The set point can be adjusted locally using push buttons or remotely with a 1-11kΩ potentiometer. A setback input is provided for use with an external switch. The minimum and maximum temperatures values are stored for display via the menu. The AX-ET-4 is provided in a DIN rail carrier and is available as 24Vac/dc or 230Vac powered versions.
Product Features
Setpoint range -10C to +110C
Adjustable differential per stage
LCD display of temperature, setpoint etc
Setback input
Setpoint range -10C to +110C
Adjustable differential per stage
LCD display of temperature, setpoint etc
Setback input

Power Supply
AX-ET-4-24 24Vac 275mA or 24Vdc 105mA 15%

AX-ET-4-230 230Vac 15%
Inputs
Sensor, 10K3A1 ( See Axio temperature sensor range )

Remote Setpoint, 1-11kΩ ( For 4C or 20C )

Setback, volt free timer input (Close contact to activate setback)
LCD Display
2 lines by 8 characters
Temperature Range
-20C to +120C
Stage Selection
CCCC, CCCH, CCHH, CHHH, HHHH (C = cooling, H = heating)
Setpoint
-10C to +110C
Offset
0 to 50C
Differential
0 to 12C
Setback Range
0 to 30C
On/Off delay Time
1 to 250 seconds
Output Contacts
4 SPNO volt free relays, rated at 10A, 250Vac, resistive load
Terminals
Rising clamp for 0.5-2.5mm2 cable
Dimensions & Weight
AX-ET-4-24 90(W) x 82(H) x 48(D) mm / 125 gms

AX-ET-4-230 146(W) x 82(H) x 55(D) mm / 225 gms
Ambient temperature range
0 to 50C
Country of origin
United Kingdom

AX-ET-4.pdf / Electronic Thermostat - Four Stage
