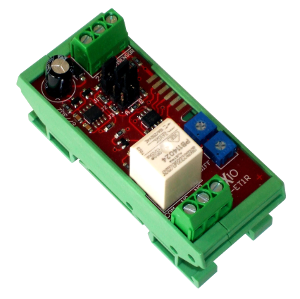

 <<  |  <  |   AX-ET-1-24R - Electronic thermostat - single stage 24Vac/dc DIN rail
AX-ET-1-24R / Electronic thermostat - single stage 24Vac/dc DIN rail POA Qty
AX-ET-1-MTG-1R / IP65 enclosure for AX-ET-1-24R POA Qty
 <<  |  <  | OVERVIEW | SPECIFICATION | DATASHEETS

The AX-ET-1-24R Electronic Thermostat is used for the monitoring and control of fluids (gas and liquids) between the range of -5°C to +95°C. They control heating or cooling in response to high or low temperatures. The set point and differential are adjustable on the pcb. There are four link selectable temperature ranges on the units. The units are 24Vac/dc powered.
Product Features
Four Temp. Ranges (link selectable)
Adjustable Differential (0.5 to 12°C)
Internal Setpoint
Heat or Cool Control
24Vac/dc
DIN Rail mounting.
LED Indication

Power Supply
24Vac/dc
Output Contacts
SPCO Relay rated at 5A NO or 3A NC@250Vac resistive (VFC).
Temperature Ranges
-5°C to +35°C

+10°C to +50°C

+35°C to +75°C

+55°C to +95°C
Sensor
10K3A1 (not supplied see Annicom temperature sensor range -T)
Mode
Cooling / Heating (link selectable)
Potentiometer Controls
Setpoint depends on range
Differential
0.5 to 12°C
Dimensions
34(w) x 80(h) x 42(d) mm
Terminals
Rising Clamp for 0.5-1.5mm² cable.
Country of Origin
United Kingdom

AX-ET-1-24R.pdf / Electronic thermostat - single stage 24Vac/dc DIN rail
