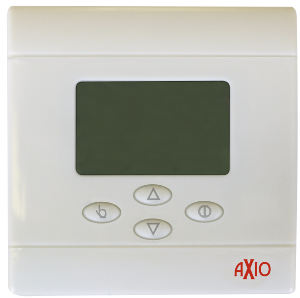

<< | < | AX-E05Kxx - Heating or Cooling Modulating Fan Coil Controller
|
| |
|
The AX-E05K Series Controller is a stand-alone, microprocessor based Controller with x icons and 4-digit LCD display. The Controllers are designed to control the fans, valves, compressors or electric heaters in fancoil unit and air-conditioner applications. The models are available for heating or cooling Raise/Lower or Proportional control of 2-pipe or 4-pipe fan-coil units requiring analogue inputs. |
Product Features
| • Proportional and Integral Algorithm
• Intuitive User Interface
• For two or four pipe fan coil applications
| • Remote sensor option
• Accurate Temperature Control
• Heating / Cooling and 3 speed fan output
|
Operating Voltage
| 230Vac 50/60Hz (+/- 15%)
| Power Consumption
| 6VA (without load)
| Occupied Temperature Setting
| 0 to 55oC
| Setpoint Range
| 10 to 30oC default 23oC
| Setpoint Resolution
| 0.5oC
| LCD
| 4 digit 6 Icons Backlight
| LCD Size
| 44 x 25mm
| Display Resolution
| 0.2oC
| Output
| depends on unit Raise/Lower 1A(1)@230Vac
|
| 0 to 10 Vdc modulating 5mA
| Fan Switch
| Three Speed Fan Switch 1A(1)@230Vac
| Mode Switch
| Cool -Off- Heat
| Control Performance
| Adjustable Proportional plus Integral (PI) Control
| Connections
| Screw in terminals suitable for 1.5mm2 wires
| Temperature Sensor
| 10K3A1 Thermistor can be remote (see J3)
| Mounting
| Wall mounting , standard single gang back box.
| Dimensions
| 86(W) x 86(H) x 16.5mm (D)
|
| AX-E05Kxx.pdf / Heating or Cooling Modulating Fan Coil Controller |  |
|
|
|
