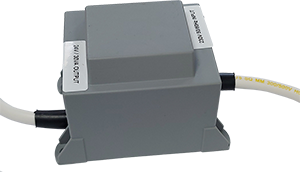

<< | < | ATL-TX-L - Encapsulated Transformer 30VA
|
| |
|
The ATL-TX-L Leaded transformer is fully encapsulated complete with connection leads for both primary and secondary connection also it is fully insulated making it ideal for mounting directly to a Fan Coil Unit. |
Product Features
| • Panel & Wall Mount
• Fully Insulated
| • Compact
• 240Vac Primary, 24Vac Secondary
|
Output
| 24Vac
| Supply Voltage
| 230Vac
| Current rating
| 30VA
| Primary
| 240Vac
| Secondary
| 24Vac
| Termination
| Flying Lead 90cm 2 core Flex
| Mounting
| 4 x 4.2mm holes
| Weight
| 0.74 Kg
| Dimensions
| 81 x 55 x 54.2 mm
| Country of origin
| Taiwan
|
|
|
| ATL-TX-L.pdf / Encapsulated transformer, 230Vac to 24Vac 30VA Power Supply |  |
|
|
|
