<< | < | ATL-HDR-30 - 230Vac to 24Vdc Power Supply (30W)
|
| |
|

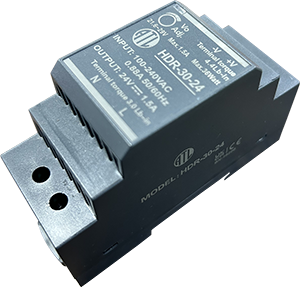

The ATL-HDR-30-24 Power Supply is a cost effective, ultra slim unit providing a regulated 24Vdc output from an 85 to 264Vac input. The power supply is designed to provide 24Vac to power the ATL range of DIN Rail Modules, but has many other uses where a cost effective DC supply is required. The ATL-HDR-30-24 features short circuit, over load & over voltage protection and is designed for mounting on TS35 section DIN rail. |
Product Features
| • Regulated 24Vdc Output at 2/1.5A
• 85 to 264Vac or 120 to 370Vdc input
• Short Circuit, Over Load, Over Voltage
| • High Quality Rising Clamp Terminals
• LED Power Indication
• DIN Rail Mounting (TS35)
|
Input Voltage
| 100 to 240Vac
| Input Frequency Range
| 47 to 63Hz
| Input Current
| 0.8A @ 50/60 Hz
| Input Inrush Current (max.)
| 25A @ 115Vac or 45A @ 230Vac
| Output Voltage
| 24V @ 1.5A
| Output Voltage Adjustment Range
| 12Vdc
| 24Vdc
| 21.6 to 29Vdc
| Output Current
| 12Vdc
| 24Vdc
| 0 to 1.5A
| Output Power
| 12Vdc
| 24Vdc
| 36W
| Terminals
| Rising Clamp for 0.5-2.5mm² Cable
| LED Indication
| ON when power on
| Ambient Temperature Range
| -30 to +70°C @ 20 to 90% RH
| Safety Standards
| UL508, TUV EN60950-1 Approved
| EMC Conduction and Radiation
| Compliance to EN55032, EN61000-3-2, -3
| Weights & Dimensions
| 35mm(W) x 90mm(H) x 54.5mm(D), 120grams
| Country of origin
| Taiwan
|
| ATL-HDR-30.pdf / Universal 230Vac Input to 24Vdc Power Supply (30W) |  |
|
|
|
